Wikipedia Commons Image

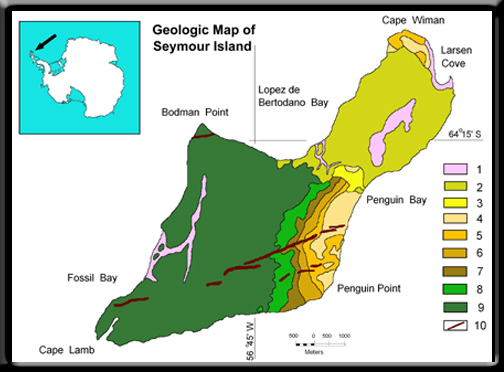

Geologic sketch map of the Seymour Island, Antarctic Peninsula
Legend: 1 – recent fluvioglacial deposits, 2 – La Meseta Formation (Eocene), 3 – Cross valley Formation (Early late Paleocene), 4 - Sobral Formation, unit 4 (Early Paleocene), 5 – Sobral Formation, unit 3 (Early Paleocene), 6 – Sobral Formation, unit 2 (Early Paleocene), 7 – Sobral Formation, unit 1 (Early Paleocene, 8 – Lopez de Bertodano Formation, unit 10 (Late Maastrichtian – Early Paleocene), 9 – Lopez de Bertodano Formation, units 1-9, 10 – Basaltic dikes

Map and Legend from Geological Locations.com



SEYMOUR ISLAND

The link is to the Wikipedia page on Seymour Island.

PENGUIN POINT CAPE LAMAS

CAPE WIMAN





PENGUIN POINT

"[The sample is a] grey sandy siltstone with echinoderm. Top of the K-T outcrop facing west." B. Huber The sample was collected in 1983. It is from the Paleocene.

PENGUIN POINT  64.19 S, 56.43 W

The link is to a series of You Tube videos on the Penguin Project





ZERO MAGNIFICATION IMAGE

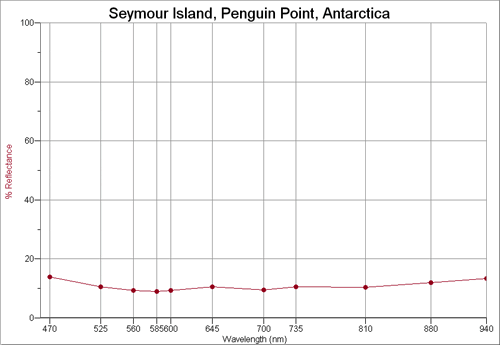

RELECTANCE SPECTRUM





1X MAGNIFICATION (WHITE LINE  = 1MM) 3X MAGNIFICATION (WHITE LINE  = 1MM)

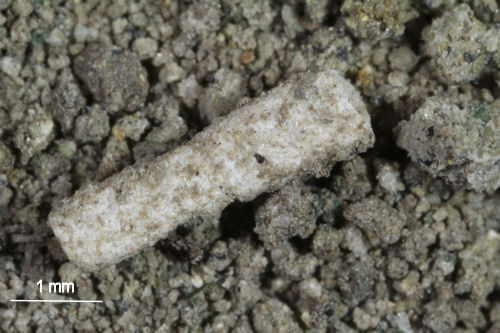

4X MAGNIFICATION (WHITE LINE  = 1MM) 5X MAGNIFICATION (WHITE LINE  = 1MM)

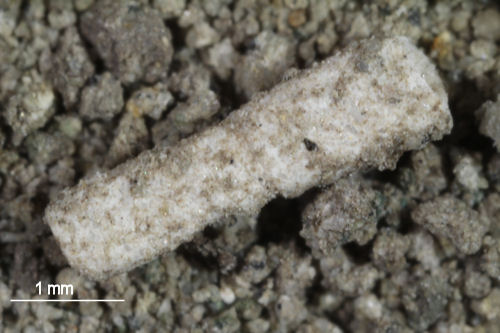

5X MAGNIFICATION (WHITE LINE  = 1MM)

5X MAGNIFICATION (WHITE LINE  = 1MM)

Return to Top

CAPE LAMAS

"Burrowed hard ground follows contact of well bedded and massive units. Outcrop is rapidly eroding and filling gully."  B. Huber The sample is a siltstone collected in 1985. It is from the Cretaceous.

CAPE LAMAS 63.54S, 57.37W

The link is to the Wikipedia page on Cape Lamas

ZERO MAGNIFICATION IMAGE

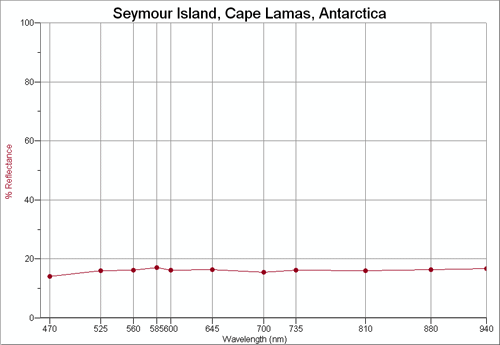

RELECTANCE SPECTRUM

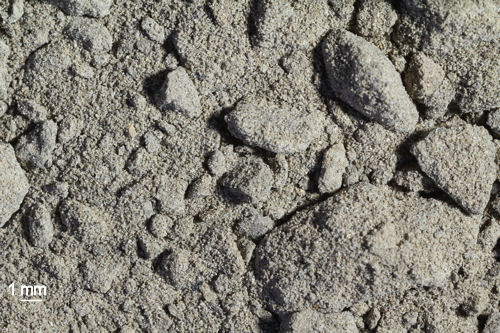

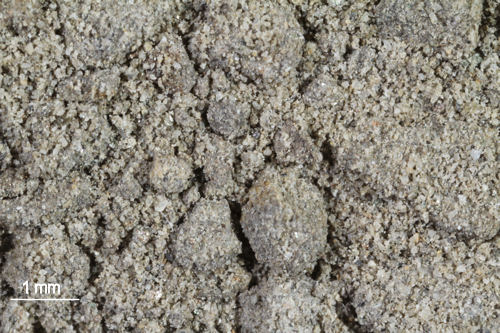

1X MAGNIFICATION (WHITE LINE  = 1MM) 3X MAGNIFICATION (WHITE LINE  = 1MM)


"Large" Pebble


Return to Top

CAPE WIMAN

"Top 6m fine sandstone with small amount of mud. Yellow-grey Fe stained streaks. !m thin laminated cross bed unit, medium sandstone with dark grains." B. Huber The sample was collected in 1983. It is from the Paleocene.

CAPE WIMAN  64.12S, 556.37W

The link is to the Wikipedia page on Cape Wiman.

ZERO MAGNIFICATION IMAGE

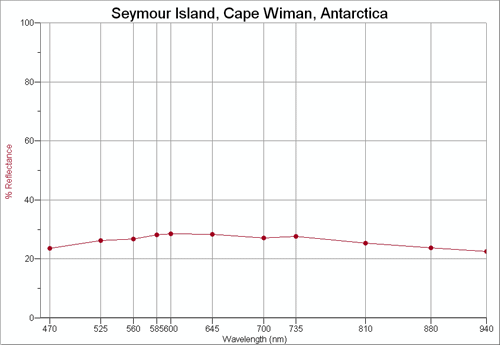

RELECTANCE SPECTRUM

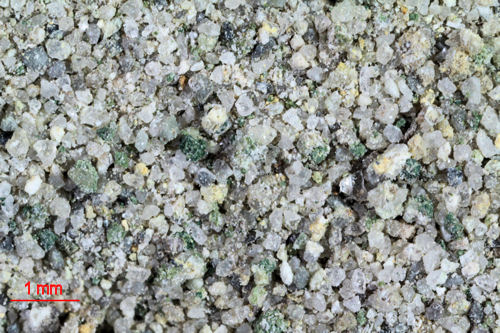

1X MAGNIFICATION (RED LINE  = 1MM) 3X MAGNIFICATION (RED LINE  = 1MM)


4X MAGNIFICATION (RED LINE  = 1MM) 5X MAGNIFICATION (RED LINE  = 1MM)
Return to Top

The samples were on loan from the United States Polar Rock Repository at The Ohio State University.
